Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display

Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display
Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display
Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display

Large Image :  Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Longda
Certification: CE,ROHS,CCC,ISO9000,ISO14001
Model Number: P1.86(P1.25,P1.53,P2,P2.5)
Document: Flight Case.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 700-2000USD
Packaging Details: Flight Case
Delivery Time: 15-30Days
Payment Terms: T/T
Supply Ability: 1000PCS
Contact Now

Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display

Description
Name: P1.86 Led Poster Screen Screen Dimension: 640x1920mm Or Customized
Brightness: 600-800cd/sqm Warranty: 1 Year
Module Size: 320mm*160mm Life Span: 100000hours
Product Name: Led Poster Display,Indoor P1.86， LED Poster Screen Refresh Rate: 3840Hz/7680Hz
Highlight:

GOB LED poster screen with warranty

,

LED poster display multiple sizes

,

durable GOB LED poster screen

1.LED Poster Splicing Effect Diagram
Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 0
2.Key Features

  • Ultra-Portable & Foldable:​ Designed to fold quickly, making it incredibly easy to transport and store when not in use.

  • Expandable Display:​ Multiple units can be spliced together seamlessly to boost pixel density and maintain perfect image proportions.

  • Rugged Durability:​ Built with advanced Glue-on-Board (GOB) technology to protect against collisions, water, and dust.

  • Move Anywhere:​ Features a built-in wheelbase, allowing you to change locations and adapt to new scenes in seconds.

  • Customized Solutions:​ With various models and styles available, customers can select the ideal configuration for any environment.

  • Flexible Connectivity:​ The all-in-one control box offers comprehensive input options, including USB, Wi-Fi, 4G, and wired synchronization.

3.Applications
Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 1
                                   Seamless Spliced Effect of the LED Poster Screen​



4.Product Images

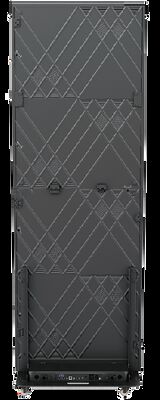

P1.86 GOB LED Poster Display overview

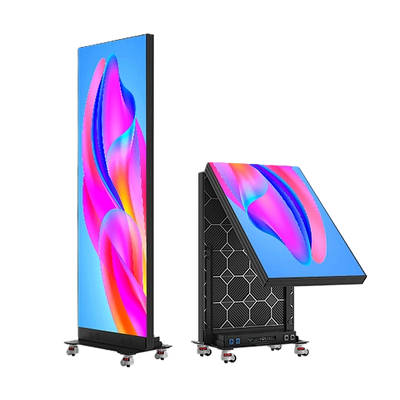

                                         Open, Semi-folded, and Closed Views



5.Technical Specifications


Model P1.25 P1.538 P1.86 P2 P2.5
Pixel Pitch  1.25mm 1.53mm 1.86mm 2mm 2.5mm
LED Encapsulation SMD1010 SMD1010 SMD1515 SMD1515 SMD2020
Resolution (dots/㎡) 640,000 422,500 288,906 250,000 160,000
Scan Method 1/64 1/52 1/43 1/40 1/32
Module Size (mm) 320 x 160 320 x 160 320 x 160 320 x 160 320 x 160
Cabinet Size (mm) 640 x 1920  640 x 1920  640 x 1920  640 x 1920  640 x 1920
Maintenance Front Service Front Service Front Service Front Service Front Service
Cabinet Weight 52 KG 52 KG 52 KG 52 KG 52 KG
Viewing Angle H:140°, V:140° H:140°, V:140° H:140°, V:140° H:140°, V:140° H:140°, V:140°
Grey Scale 16bit 16bit 16bit 16bit 16bit
Refresh Rate (HZ) 3840Hz or 7680Hz 3840Hz or 7680Hz 3840Hz or 7680Hz 3840Hz or 7680Hz 3840Hz or 7680Hz
Brightness (nits) ≥600 ≥600 ≥600 ≥600 ≥600
Working Voltage (V) AC 100~240V AC 100~240V AC 100~240V AC 100~240V AC 100~240V
Average Power
 Consumption (W/㎡)		 150w 150w 150w 150w 150w
Maximum Power
Consumption (W/㎡)		 450w 450w 450w 450w 450w
IP Grade IP43 IP43 IP43 IP43 IP43
Operation Humidity 10～95%RH 10～95%RH 10～95%RH 10～95%RH 10～95%RH
Operation Temperature -20℃～75℃ -20℃～75℃ -20℃～75℃ -20℃～75℃ -20℃～75℃
Control Method Wi-Fi / USB / Computer
Module Type GOB (Anti-collision & Waterproof)
Cabinet Material Die-casting aluminum



6.Product Dimensions & Accessories Diagram

Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 3



7.System Connection Diagram

Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 4

3-in-1 Control Box:​ Supports asynchronous control via smartphone or laptop, as well as synchronous playback.


8.Certificate of Honor
Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 5

9.Packaging for LED Poster Screens
To ensure maximum protection, we utilize robust aluminum flight cases or sturdy wooden crates. Please note that the exact case size will be adjusted according to the product specs and quantity.
Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 6Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 7



10.Factory Photos
 Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 8
Professional LED poster displays with multiple sizes available. Manufacturing expertise since 2009.

Factory Overview: Longda Optoelectronics

Our facility occupies an entire independent building with a total of 5 floors:

  • 1st Floor:​ Finished Product Aging Area and Product Showroom.

  • 2nd Floor:​ Administrative Offices and SMT Workshop.

  • 3rd Floor:​ Outdoor Glue-potting Workshop and LED Module Aging Area.

  • 4th Floor:​ GOB Production Line and Final Assembly Workshop.

  • 5th Floor:​ Raw Material Warehouse, storing semi-finished products, electronic components, and modules.


Foldable LED Poster, Splicable LED Poster, and Movable P1.86 GOB LED Poster Display 9

                                                 Flagship Show,TeamDinner,Sightseeing



11.FAQ

  • Q1:​ Can this LED poster be used outdoors?

  • A:​ It is designed for high-brightness indoor use. While the GOB process offers waterproofing, we recommend using it under a roof or in semi-outdoor areas.

  • Q2:​ How many screens can be spliced together?

  • A:​Signal Load Algorithm: See Table Below

  • Playback Box Load Calculation
    TB60 Playback Box Max Load: 2.3 million pixels (Width 4096 x Height 4096)
    Pixel Pitch(mm) 1.25 1.53 1.86 2 2.5
    Screen Width(mm) 640 640 640 640 640
    Screen High(mm) 1920 1920 1920 1920 1920
    Max Load Width (in pixels) 512  416  344  320  256
    Max Load Height (in pixels) 1536  1248  1032  960  768
    Max. Units Supported 2  4  6  7  8


  • Q3:​ Is the stand included?

  • A:​ Yes, the floor-standing bracket is included in the package.

  • Q4: Are LED poster screens expensive?

    A:​ They are actually very cost-effective. We sell them as a complete package, ready to use right out of the box (plug-and-play). Due to their portability​ and smaller footprint, they deliver a greater advertising impact relative to their price point than larger LED installations.

  • Q5: Are the packaging dimensions fixed?

    A:​ No. Since sizes and quantities vary, we adjust the packaging solution accordingly.
