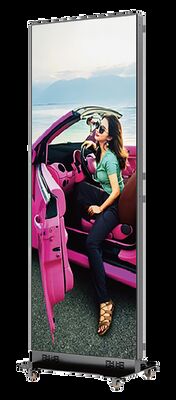

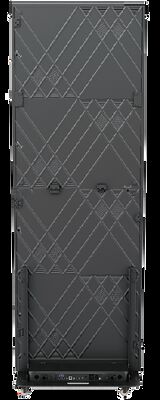

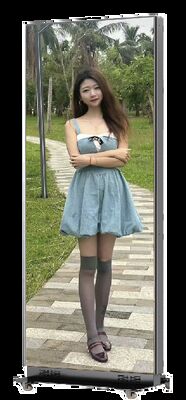

Foldable, Splicable, and Movable P1.86 GOB LED Poster Display

Foldable, Splicable, and Movable P1.86 GOB LED Poster Display
Foldable, Splicable, and Movable P1.86 GOB LED Poster Display Foldable, Splicable, and Movable P1.86 GOB LED Poster Display Foldable, Splicable, and Movable P1.86 GOB LED Poster Display Foldable, Splicable, and Movable P1.86 GOB LED Poster Display Foldable, Splicable, and Movable P1.86 GOB LED Poster Display Foldable, Splicable, and Movable P1.86 GOB LED Poster Display

Large Image :  Foldable, Splicable, and Movable P1.86 GOB LED Poster Display

Product Details:
Place of Origin: china
Brand Name: longda
Certification: ce
Model Number: 1.86
Document: Flight Case.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1
Packaging Details: Eco-friendly wooden crate
Delivery Time: 15-30days
Payment Terms: D/A,D/P,T/T
Supply Ability: 100
Contact Now

Foldable, Splicable, and Movable P1.86 GOB LED Poster Display

Description
Highlight:

GOB LED poster screen with warranty

,

LED poster display multiple sizes

,

durable GOB LED poster screen

LED Poster Splicing Effect Diagram
Foldable, Splicable, and Movable P1.86 GOB LED Poster Display 0
Key Features

  • Ultra-Portable & Foldable:​ Designed to fold quickly, making it incredibly easy to transport and store when not in use.

  • Expandable Display:​ Multiple units can be spliced together seamlessly to boost pixel density and maintain perfect image proportions.

  • Rugged Durability:​ Built with advanced Glue-on-Board (GOB) technology to protect against collisions, water, and dust.

  • Move Anywhere:​ Features a built-in wheelbase, allowing you to change locations and adapt to new scenes in seconds.

  • Customized Solutions:​ With various models and styles available, customers can select the ideal configuration for any environment.

  • Flexible Connectivity:​ The all-in-one control box offers comprehensive input options, including USB, Wi-Fi, 4G, and wired synchronization.


Product Images
Foldable, Splicable, and Movable P1.86 GOB LED Poster Display 1

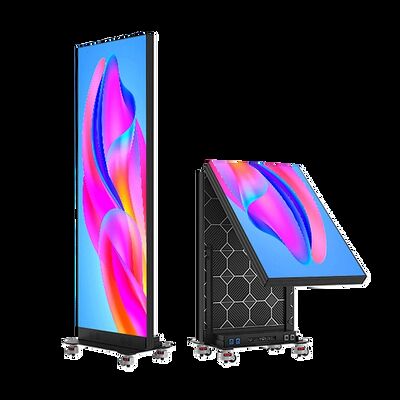

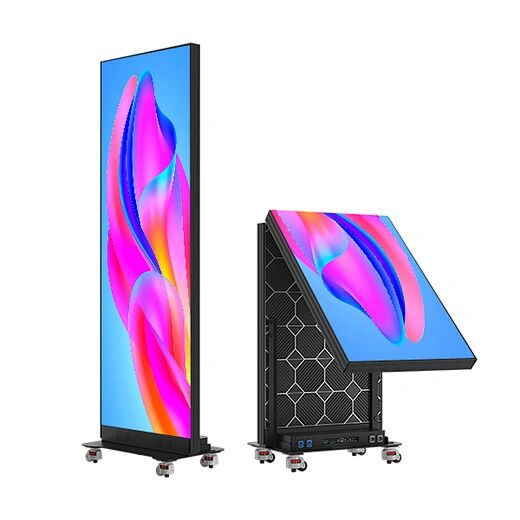

Open, Semi-folded, and Closed Views



Technical Specifications

Parameter Specifications Specifications Specifications Specifications Specifications
Model P1.86 p1.25 p1.53 p2 p2.5
Module Type GOB (Anti-collision & Waterproof) GOB (Anti-collision & Waterproof) GOB (Anti-collision & Waterproof) GOB (Anti-collision & Waterproof) GOB (Anti-collision & Waterproof)
Pixel Pitch (mm) 1.86mm 1.25mm 1.53mm 2mm 2.5mm
LED Encapsulation SMD1515 SMD1010 SMD1010 SMD1515 SMD2020
Screen Resolution (dots/㎡) 288,906 640,000 422,500 250,000 160,000
Scan Method 1/43 1/64 1/52 1/40 1/32
Module Size (mm) 320 x 160 320 x 160 320 x 160 320 x 160 320 x 160
Cabinet Size (L*W*H) 640 x 1920 mm 640 x 1920 mm 640 x 1920 mm 640 x 1920 mm 640 x 1920 mm
Cabinet Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Maintenance Rear Service Rear Service Rear Service Rear Service Rear Service
Cabinet Weight 52 KG 52 KG 52 KG 52 KG 52 KG
Viewing Angle H:140° V:140° H:140° V:140° H:140° V:140° H:140° V:140° H:140° V:140°
Grey Scale 16bit 16bit 16bit 16bit 16bit
Refresh Rate (HZ) ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Brightness (nits) ≥1000 ≥1000 ≥1000 ≥1000 ≥1000
Working Voltage (V) AC 100~240V AC 100~240V AC 100~240V AC 100~240V AC 100~240V
Average Power Consumption (W/㎡) 150 150 150 150 150
Maximum Power Consumption (W/㎡) 450 450 450 450 450
IP Grade IP43 IP43 IP43 IP43 IP43
Operation Humidity 10～95%RH 10～95%RH 10～95%RH 10～95%RH 10～95%RH
Operation Temperature -20℃～40℃ -20℃～40℃ -20℃～40℃ -20℃～40℃ -20℃～40℃
Control Method Wi-Fi / USB / Computer Wi-Fi / USB / Computer Wi-Fi / USB / Computer Wi-Fi / USB / Computer Wi-Fi / USB / Computer



Product Dimensions & Accessories Diagram

Foldable, Splicable, and Movable P1.86 GOB LED Poster Display 2



System Connection Diagram

Foldable, Splicable, and Movable P1.86 GOB LED Poster Display 3

3-in-1 Control Box:​ Supports asynchronous control via smartphone or laptop, as well as synchronous playback.



Factory Photos
 Foldable, Splicable, and Movable P1.86 GOB LED Poster Display 4
Professional LED poster displays with multiple sizes available. Manufacturing expertise since 2009.

Factory Overview: Longda Optoelectronics

Our facility occupies an entire independent building with a total of 5 floors:

  • 1st Floor:​ Finished Product Aging Area and Product Showroom.

  • 2nd Floor:​ Administrative Offices and SMT Workshop.

  • 3rd Floor:​ Outdoor Glue-potting Workshop and LED Module Aging Area.

  • 4th Floor:​ GOB Production Line and Final Assembly Workshop.

  • 5th Floor:​ Raw Material Warehouse, storing semi-finished products, electronic components, and modules.


FAQ

  • Q1:​ Can this LED poster be used outdoors?

    • A:​ It is designed for high-brightness indoor use. While the GOB process offers waterproofing, we recommend using it under a roof or in semi-outdoor areas.

  • Q2:​ How many screens can be spliced together?

    • A:​

      The maximum load depends on the playback box. Take the TB60 as an example: its maximum load is 2.3 million pixels.

      Based on a single poster resolution of 344px (W) × 1920px (H), cascading up to the 7th unit​ would exceed this pixel limit. Therefore, the system can only support 6 units.

      It is important to note that the TB60 cannot stack its processing power. The total load must adhere to the maximum capacity of the first unit​ in the cascade chain.

  • Q3:​ Is the stand included?

    • A:​ Yes, the floor-standing bracket is included in the package.
