Product Details:
|
Pixel Pitch: | 2mm | Usage: | Indoor P2 Soft Led Display |
---|---|---|---|
Screen Dimension: | 480 X 480mm | Led Chip: | 1515 |
Cabinet Material: | Die - Casting Aluminum | Brightness: | 300 - 600nits |
High Light: | 2880Hz Led Flexible Module,flexible led video panels IC 5153,curved led display screen IC 6363 |

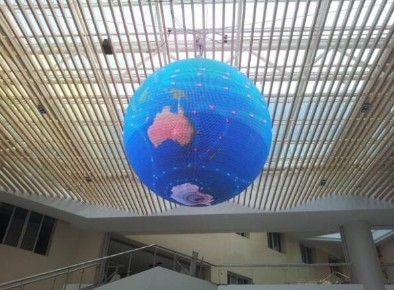

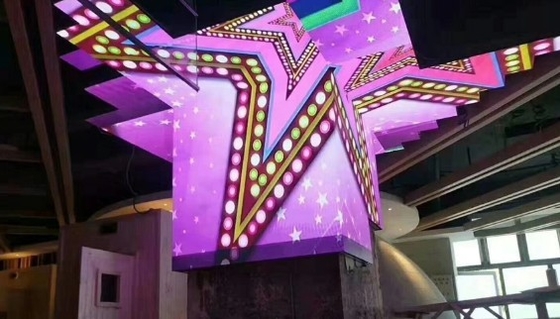

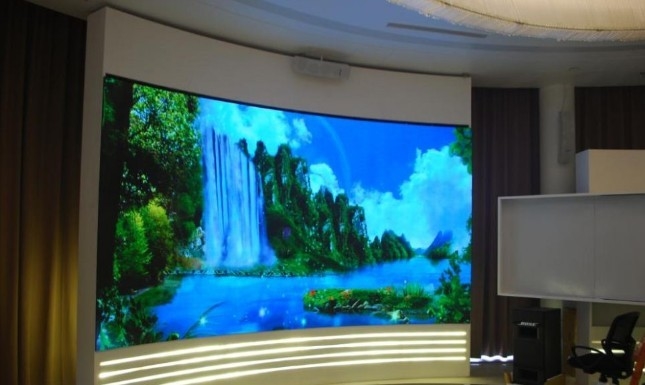

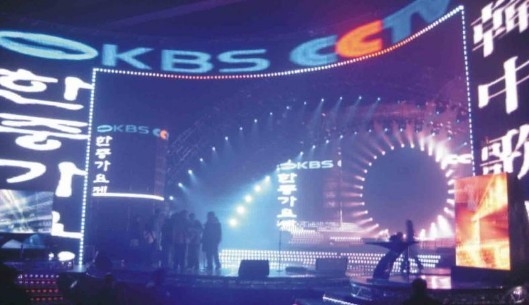

LED Flexible Module Advertising P2 Curved Flexible LED Video Wall Soft LED Module
Advantages :
1 . Ultra HD: 250000 pixels per square meters , like as HD TV screen with full color ;
2 . Ultra slim cabinet : the thickness is only 65mm , with fashion configuration design ;
3 . High strength : made with high quality Die - casting Aluminum cabinet , enhance the
heat dissipation , and extend the cabinet ' s working life .
Specifications :
Indoor P2 Full Color LED Screen |
|||||||
Part I Technicial Parameters |
|||||||
Led Module Specification |
|||||||
NO. |
Item |
Specification |
|||||
1 |
Pixel Pitch |
2mm |
|||||
2 |
Module Resolution |
W64×H64dots |
W128×H64dots |
W160×H80dots |
W120×H60dots |
||
3 |
Module Size |
128*128mm |
256*128mm |
320*160mm |
240*120mm(soft) |
||
4 |
Led Packing |
1515 |
|||||
5 |
IP Rate |
43 |
|||||
6 |
IC |
2038 |
5124 |
6363 |
5153 |
||
7 |
LED composition |
1R1G1B |
|||||
Cabinet Specification |
|||||||
1 |
Cabinet Size |
512*768mm |
512*512mm |
640*480mm |
480*480mm |
||
2 |
Module Qty |
W4X H6=24PCS |
W2X H4=8PCS |
W2× H3=6PCS |
W2× H4=8PCS |
||
3 |
Physical Resolution |
W256×H384dots |
W256×H256dots |
W320×H240dots |
W240× H240dots |
||
4 |
Power Consumption(MAX.) |
400W/m2 |
200W/m2 |
200W/m2 |
650W/m2 |
||
5 |
Power Consumption(AVE.) |
150W/m2 |
100W/m2 |
100W/m2 |
300W/m2 |
||
6 |
Cabinet Material |
Die-casting Aluminum |
|||||
7 |
Physical Density |
250000 dots/m2 |
|||||
8 |
Net Weight |
11Kg |
8Kg |
9.7Kg |
8kg |
||
Screen Specification |
|||||||
1 |
Brightness |
700cd/m2 |
800cd/m2 |
600cd/m2 |
700cd/m2 |
||
2 |
Colors |
16.7 trillion |
|||||
3 |
Brightness Control |
Software 256 level adjustable |
|||||
4 |
Gray Level |
14 |
|||||
5 |
View Distance |
2m~20m |
1.3~12m |
||||
6 |
Refresh Rate |
≥1200~1920Hz |
≥1200~1920Hz |
≥1920~3840Hz |
≥2880Hz |
||
7 |
Drive Mode |
1/32s |
1/40s |
1/30s |
|||
8 |
Life Span |
100,000h |
|||||
9 |
MTBF |
1000h |
|||||
10 |
Control mode |
Synchronous control or Asynchronous control |
|||||
11 |
Frame Frequency |
≥60Hz |
|||||
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||||
13 |
Operation Temperature |
-20℃ ~ +45℃ |
|||||
14 |
Operation Humidity |
10%~95% |
FAQ :
1 ) Reply your inquiry in 24 working hours ;
2 ) Experienced staffs answer all your query in fluent English,Spanish,French,German etc ;
3 ) Customized design is available,OEM & ODM are welcomed ;
4 ) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs ;
5 ) Special discount and protection of sales area provided to our distributor ;
6 ) Warmly welcome your visit in our company if available ;
7 ) Guidance service: We can guide on line if customers have questions about the installation and usage ;
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance ;
8 ) Warranty period: 2-3 years after shipment .
