Product Details:
|
| Emitting Color: | RGB | Led Lamp Size: | 1515 |
|---|---|---|---|
| Brightness: | 300 - 600nits | Cabinet Size: | 512 * 512mm |
| Type: | P4 Led Soft Display Screen | Product Name: | 4mm Flexible Led Screen Wall |
| High Light: | MBI5124 Led Flexible Module,1920Hz led panel module,flexible led matrix display ISO14001 |
||

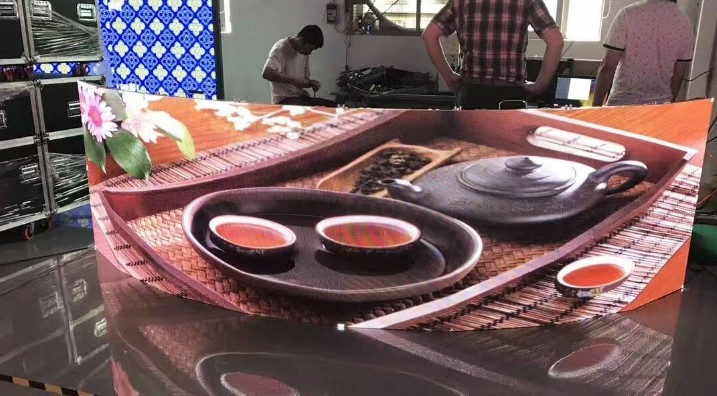

LED Flexible Module P4 Creative Colunm LED Display Soft Flexible LED Module
Advantages :
1 . Compared with the traditional PCB material , the flexible FPC circuit board made of flexible insulating material
has high compressive and distortion resistance , which can better solve the problems of installation difficulties .
2 . LED flexible module installation mode is mainly magnetic column suction , installation is convenient and quick ,
but also easy to shape , magnetic suction installation and conventional indoor screen installation as simple ,
and box connection line is fast to joint connection , firm and reliable , for you to save the " prehistory force " .
Compared with regular size group , it saves more time and is easier to install .
3 . Good ductility , can be arbitrary modeling , cylindrical screen has high brush performance , can be lifted and hanging ,
with the maximum sound requirements .
4 . Ultra - thin , using special materials and advanced technology , ultra - thin and ultra - light , the weight of a single
module is only 85g , conventional LED modules are heavy .
Specifications :
|
P4 LED Screen for Transport Ads |
||||||
|
Part I Technicial Parameters |
||||||
|
Led Module Specification |
||||||
|
NO. |
Item |
Specification |
||||
|
1 |
Pixel Pitch |
4mm |
||||
|
2 |
Module Resolution |
W64×H32dots |
W80×H40dots |
|||
|
3 |
Module Size |
256*128mm(soft) |
256*128mm |
320*160mm |
||
|
4 |
Led Packing |
2121 |
Nationstar2121 |
2121 |
||
|
5 |
IP Rate |
43 |
65 |
43 |
||
|
6 |
IC |
Constant current IC |
MBI5124 |
2038s |
||
|
7 |
LED composition |
1R1G1B |
||||
|
Cabinet Specification |
||||||
|
1 |
Cabinet Size |
512*512mm |
640*640mm |
|||
|
2 |
Module Qty |
W2X H4 =8PCS |
W2X H4 =8PCS |
|||
|
3 |
Physical Resolution |
W128×H128dots |
W160×H160dots |
|||
|
4 |
Power Consumption(MAX.) |
200 W/m2 |
300 W/m2 |
|||
|
5 |
Power Consumption(AVE.) |
100 W/m2 |
150 W/m2 |
|||
|
6 |
Cabinet Material |
Die-casting Aluminum |
||||
|
7 |
Physical Density |
62500 dots/m2 |
||||
|
8 |
Net Weight |
7Kg |
||||
|
Screen Specification |
||||||
|
1 |
Brightness |
900cd/m2 |
1100cd/m2 |
860cd/m2 |
||
|
2 |
Colors |
16.7 trillion |
||||
|
3 |
Brightness Control |
Software 256 level adjustable |
||||
|
4 |
Gray Level |
14 |
||||
|
5 |
View Distance |
5～30m |
||||
|
6 |
Refresh Rate |
≥1200~1920Hz |
≥1920Hz |
≥1920Hz |
||
|
7 |
Drive Mode |
1/16s |
1/16s |
1/20s |
||
|
8 |
Life Span |
100,000h |
||||
|
9 |
MTBF |
1000h |
||||
|
10 |
Control mode |
Synchronous control or Asynchronous control |
||||
|
11 |
Frame Frequency |
≥60Hz |
||||
|
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
13 |
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
14 |
Operation Humidity |
10%～95% |
||||
FAQ :
1 ) Reply your inquiry in 24 working hours ;
2 ) Experienced staffs answer all your query in fluent English,Spanish,French,German etc ;
3 ) Customized design is available,OEM & ODM are welcomed ;
4 ) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs ;
5 ) Special discount and protection of sales area provided to our distributor ;
6 ) Warmly welcome your visit in our company if available ;
7 ) Guidance service: We can guide on line if customers have questions about the installation and usage ;
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance ;
8 ) Warranty period: 2 - 3 years after shipment .
