Product Details:
|
| Module Type: | Flexible P4 Led Panel | Frame Frequency: | 1200 - 1920hz |
|---|---|---|---|
| View Distance: | 4～50m | Colors: | 16.7 Trillion |
| Life Span: | 100,000h | Brightness: | ≥5000nits |
| High Light: | 240*120mm LED Flexible Module,foldable p4 led display module,foldable led display 1200Hz |
||
LED Flexible Module Latest New Technology P4 P2 240mm * 120mm Advertising Customezed Size Foldable
Advantages

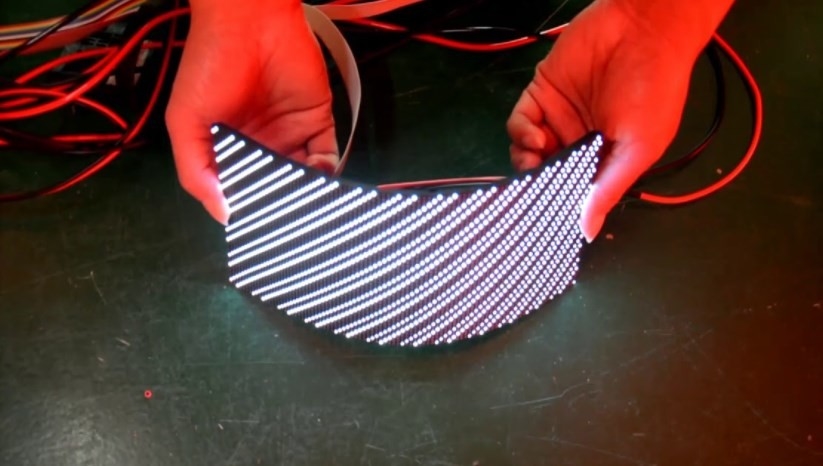

1 . The flexible FPC circuit board made of flexible insulating material has high compressive and distortion resistance ,
which can better solve the problems of " beating around the bush , corner by corner " installation difficulties ;

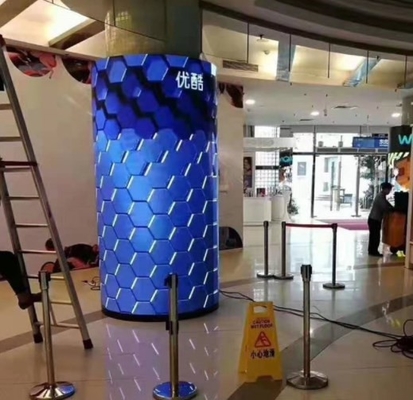

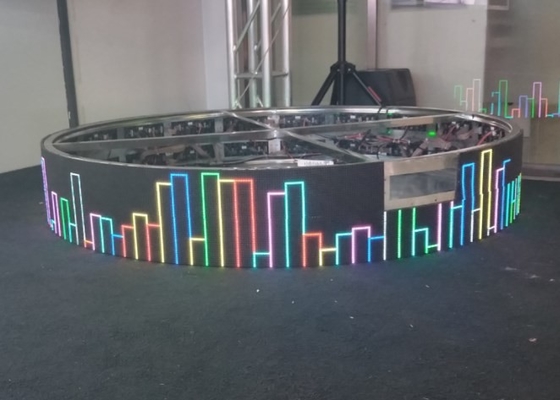

2 . Good ductility , can be arbitrary modeling , cylindrical screen has high brush performance , can be lifted ,
with the maximum sound requirements ;

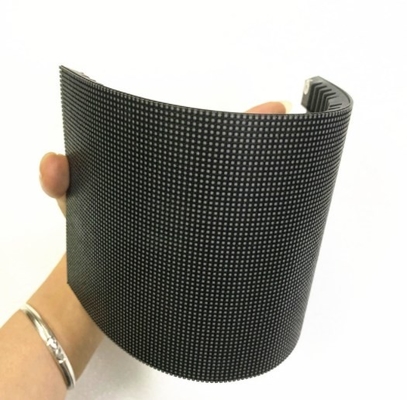

3 . Ultra-thin , using special materials and advanced technology , ultra-light , the weight of a single module is only 85g ,
conventional LED modules are heavy .
Technical parameter
|
P4 LED Screen for Transport Ads |
||||||
|
Part I Technicial Parameters |
||||||
|
Led Module Specification |
||||||
|
NO. |
Item |
Specification |
||||
|
1 |
Pixel Pitch |
4mm |
||||
|
2 |
Module Resolution |
W64×H32dots |
W80×H40dots |
|||
|
3 |
Module Size |
256*128mm(soft) |
256*128mm |
320*160mm |
||
|
4 |
Led Packing |
2121 |
Nationstar2121 |
2121 |
||
|
5 |
IP Rate |
43 |
65 |
43 |
||
|
6 |
IC |
Constant current IC |
MBI5124 |
2038s |
||
|
7 |
LED composition |
1R1G1B |
||||
|
Cabinet Specification |
||||||
|
1 |
Cabinet Size |
512*512mm |
640*640mm |
|||
|
2 |
Module Qty |
W2X H4 =8PCS |
W2X H4 =8PCS |
|||
|
3 |
Physical Resolution |
W128×H128dots |
W160×H160dots |
|||
|
4 |
Power Consumption(MAX.) |
200 W/m2 |
300 W/m2 |
|||
|
5 |
Power Consumption(AVE.) |
100 W/m2 |
150 W/m2 |
|||
|
6 |
Cabinet Material |
Die-casting Aluminum |
||||
|
7 |
Physical Density |
62500 dots/m2 |
||||
|
8 |
Net Weight |
7Kg |
||||
|
Screen Specification |
||||||
|
1 |
Brightness |
900cd/m2 |
1100cd/m2 |
860cd/m2 |
||
|
2 |
Colors |
16.7 trillion |
||||
|
3 |
Brightness Control |
Software 256 level adjustable |
||||
|
4 |
Gray Level |
14 |
||||
|
5 |
View Distance |
5～30m |
||||
|
6 |
Refresh Rate |
≥1200~1920Hz |
≥1920Hz |
≥1920Hz |
||
|
7 |
Drive Mode |
1/16s |
1/16s |
1/20s |
||
|
8 |
Life Span |
100,000h |
||||
|
9 |
MTBF |
1000h |
||||
|
10 |
Control mode |
Synchronous control or Asynchronous control |
||||
|
11 |
Frame Frequency |
≥60Hz |
||||
|
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||
|
13 |
Operation Temperature |
-20℃ ～ +45℃ |
||||
|
14 |
Operation Humidity |
10%～95% |
||||
Our service
Pre-sale service :
1 . Inquiries will be replied within 24 hours ;
2 . Market research and forecast for customer ;
3 . Provide unique and professional solutions based on customer's requirement ;
4 . Data sheet and samples offered ;
5 . Other required services such as special packing design, factory visiting and so on .
In-sale service :
1 . Tracking producing procedures all the time ;
2 . Provide photos and videos as per customer's requirement during production ;
3 . Free spare parts provided .
After-sale service :
1 . Complaint respond period not exceed 24 hours , maintenance guidance and problem solution supplied in 48 hours ;
2 . Warranty : 1year ;
3 . Free technician training ;
4 . Full set of documents free of charge , which including installation guidance , software operation manual ,
easy maintenance manual and control system software CD and so on .
