Product Details:
|
| Brightness: | ≥5000nits | Color Temperature: | RGB |
|---|---|---|---|
| Viewing Angle(°): | 140 - 160° | Type: | Soft P1.875 Led Display Screen |
| Warranty: | 2 - 3 Years | Application: | Stage / Event / Hotel / Conference / Party / Shopping Mall |
| High Light: | Led Flexible Module 200W/ m2,commercial led display 1/ 64s,flexible led curtain display FPC |
||

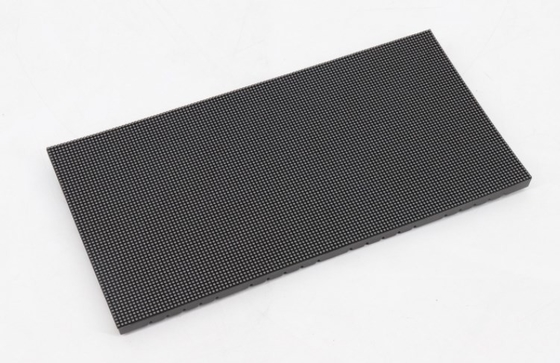

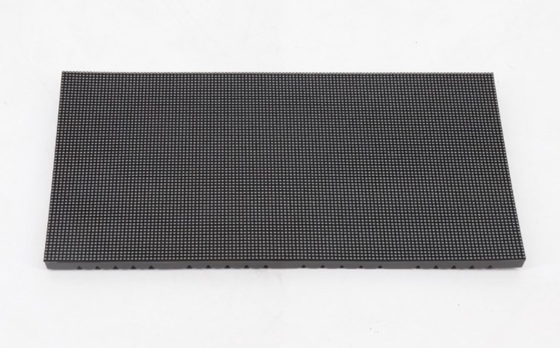

LED Flexible Module P1.875 Flexible LED Module For Indoor Commercial Display
Advantages

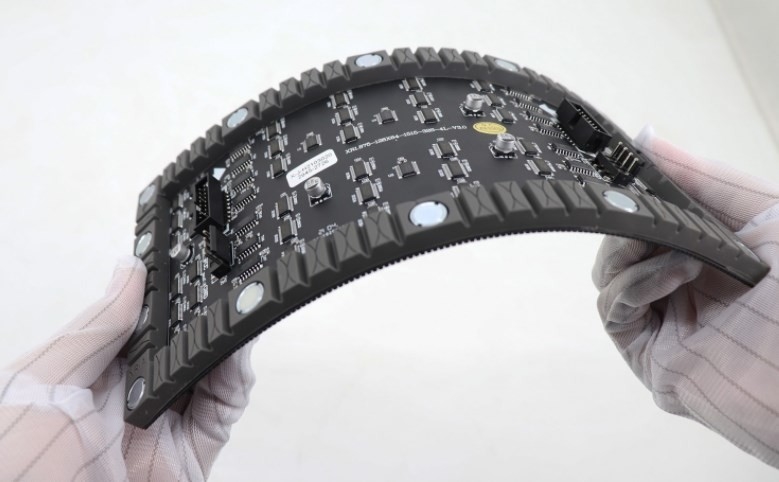

1 . The flexible FPC circuit board made of flexible insulating material has high compressive and distortion resistance ,
which can better solve the problems of " beating around the bush , corner by corner " installation difficulties ;

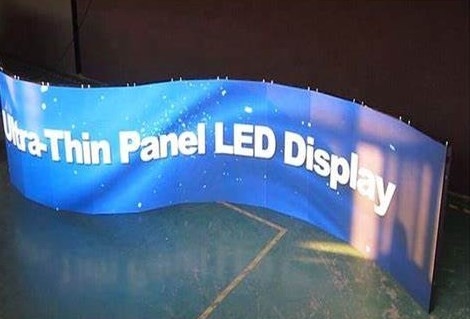

2 . Good ductility , can be arbitrary modeling , cylindrical screen has high brush performance , can be lifted ,
with the maximum sound requirements ;
3 . Ultra-thin , using special materials and advanced technology , ultra-light , the weight of a single module is only 85g ,
conventional LED modules are heavy .
Technical parameter
|
Indoor P1.875 Full Color LED Screen |
||||||||
|
Part I Technicial Parameters |
||||||||
|
Led Module Specification |
||||||||
|
NO. |
Item |
Specification |
||||||
|
1 |
Pixel Pitch |
1.875mm |
||||||
|
2 |
Module Resolution |
W128×H64dots |
W128×H128dots |
W128×H128dots |
||||
|
3 |
Module Size |
240*120mm |
240*240mm |
240*120mm(soft) |
||||
|
4 |
Led Packing |
1515 |
||||||
|
5 |
IP Rate |
43 |
||||||
|
6 |
IC |
LS9929+LS9379 |
2053 |
2053 |
2053 |
5124 |
||
|
7 |
LED composition |
1R1G1B |
||||||
|
Cabinet Specification |
||||||||
|
1 |
Cabinet Size |
480*480mm |
Magnet Splicing |
|||||
|
2 |
Module Qty |
W2X H4 =8PCS |
W2× H2=4PCS |
/ |
||||
|
3 |
Physical Resolution |
W256×H256dots |
W256×H256dots |
/ |
||||
|
4 |
Power Consumption(MAX.) |
200W/m2 |
650W/m2 |
|||||
|
5 |
Power Consumption(AVE.) |
80W/m2 |
300W/m2 |
|||||
|
6 |
Cabinet Material |
Die-casting Aluminum |
Magnet Splicing |
|||||
|
7 |
Physical Density |
284444 dots/m2 |
||||||
|
8 |
Net Weight |
5Kg |
/ |
|||||
|
Screen Specification |
||||||||
|
1 |
Brightness |
670cd/m2 |
600cd/m2 |
650cd/m2 |
600cd/m2 |
700cd/m2 |
||
|
2 |
Colors |
16.7 trillion |
||||||
|
3 |
Brightness Control |
Software 256 level adjustable |
||||||
|
4 |
Gray Level |
14 |
||||||
|
5 |
View Distance |
≥1.8m~15m |
1.3m~12m |
|||||
|
6 |
Refresh Rate |
≥3840Hz |
≥1920Hz |
≥2800Hz |
≥2800Hz |
≥1920Hz |
||
|
7 |
Drive Mode |
1/64s |
1/32s |
1/32s |
1/64s |
1/32s |
||
|
8 |
Life Span |
100,000h |
||||||
|
9 |
MTBF |
1000h |
||||||
|
10 |
Control mode |
Synchronous control or Asynchronous control |
||||||
|
11 |
Frame Frequency |
≥60Hz |
||||||
|
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
||||||
|
13 |
Operation Temperature |
-20℃ ～ +45℃ |
||||||
|
14 |
Operation Humidity |
10%～95% |
||||||
Our service
Pre-sale service :
1 . Inquiries will be replied within 24 hours ;
2 . Market research and forecast for customer ;
3 . Provide unique and professional solutions based on customer's requirement ;
4 . Data sheet and samples offered ;
5 . Other required services such as special packing design, factory visiting and so on .
In-sale service :
1 . Tracking producing procedures all the time ;
2 . Provide photos and videos as per customer's requirement during production ;
3 . Free spare parts provided .
After-sale service :
1 . Complaint respond period not exceed 24 hours , maintenance guidance and problem solution supplied in 48 hours ;
2 . Warranty : 1year ;
3 . Free technician training ;
4 . Full set of documents free of charge , which including installation guidance , software operation manual ,
easy maintenance manual and control system software CD and so on .
