High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits

High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits
High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits

Large Image :  High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits

Product Details:
Place of Origin: ShenZhen
Brand Name: Longda LED
Certification: CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Model Number: Soft P3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: Usd599 ~ Usd1099 / Sqm ( price is negotiable )
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15 - 18 days
Payment Terms: L / C , T / T , Western Union , MoneyGram
Supply Ability: 5000sqm per month

High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits

Description
Screen Type: Soft P3 Led Display Screen Led Qty: 4096leds
Color Temperature: RGB Storage Temperature(℃): -40 - 60
Brightness: ≥5000nits Voltage: 90V ~ 130V ; 196V ~ 264V
High Light:

flexible led screen panel 5000nits

,

led module p3 90V

,

130V flexible led panel video screen

LED Flexible Module P3 Full Color LED Display Screen Video Panels Flexible Modules High Resoultion SMD2121





Advantages

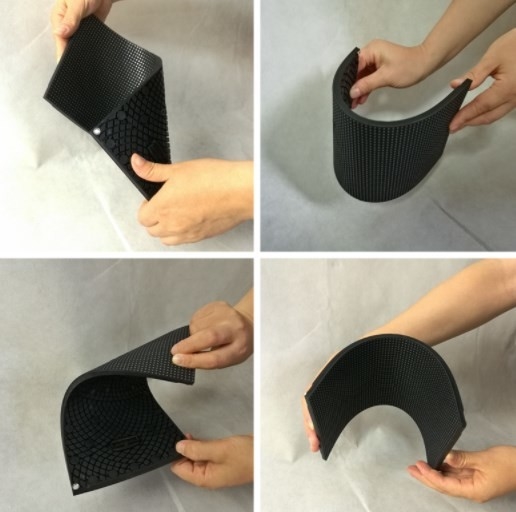

1 . The flexible FPC circuit board made of flexible insulating material has high compressive and distortion resistance ,

which can better solve the problems of " beating around the bush , corner by corner " installation difficulties ;

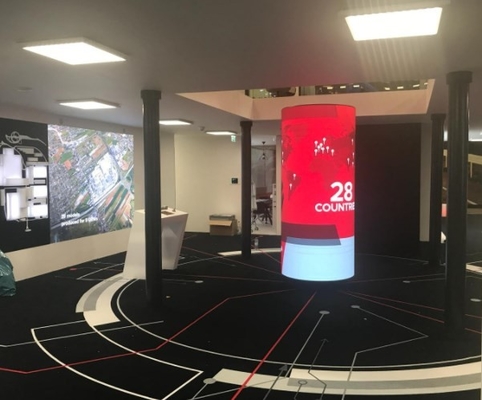

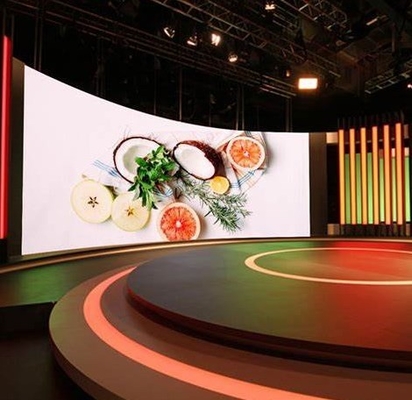

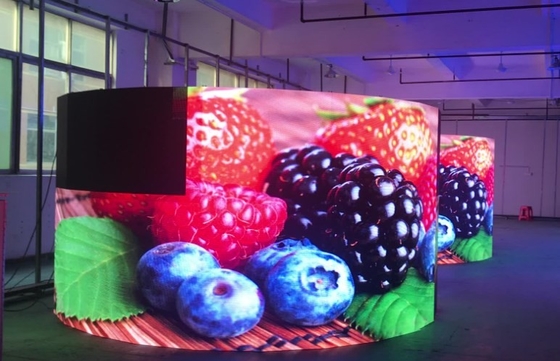

2 . Good ductility , can be arbitrary modeling , cylindrical screen has high brush performance , can be lifted ,

with the maximum sound requirements ;
3 . Ultra-thin , using special materials and advanced technology , ultra-light , the weight of a single module is only 85g ,

conventional LED modules are heavy .




Technical parameter



P3 Full Color LED Screen

Part I Technicial Parameters

Led Module Specification

NO.

Item

Specification

1

Pixel Pitch

3mm

2

Module Resolution

W64×H64dots

W80×H40dots



3

Module Size

192*192mm(soft)

192*192mm

240*120mm(soft)

192*192mm(poster)

4

Led Packing

2121

5

IP Rate

43

6

IC

5124

5020

5124

7

LED composition

1R1G1B

Cabinet Specification

1

Cabinet Size

576*576mm

480*480mm

576*1920mm

2

Module Qty

W3X H3 =8PCS

W2X H4=8PCS

W3X H10=30PCS

3

Physical Resolution

W192×H192dots

W160×H160dots

W192×H640dots

4

Power Consumption(MAX.)

200 W/m2

900 W/m2

5

Power Consumption(AVE.)

110 W/m2

280 W/m2

6

Cabinet Material

Die-casting Aluminum

Plexiglass plate

7

Physical Density

111111 dots/m2

8

Net Weight

6.6Kg

7.2Kg

5.6Kg

15Kg

Screen Specification

1

Brightness

800cd/m2

900cd/m2

800cd/m2

900cd/m2

2

Colors

16.7 trillion

3

Brightness Control

Software 256 level adjustable

4

Gray Level

16

5

View Distance

3~30m

6

Refresh Rate

≥1920hzHz

7

Drive Mode

1/16s

1/32s

1/20s

1/32s

8

Life Span

100,000h

9

MTBF

1000h

10

Control mode

Synchronous control or Asynchronous control

11

Frame Frequency

≥60Hz

12

Certification

CE/ROHS/FCC/CCC/ISO9001/ISO14001

13

Operation Temperature

-20℃ ~ +45℃

14

Operation Humidity

10%~95%



High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits 0

High Resoultion Flexible Led Screen Panel Module P3 90V 130V 5000nits 1





Our service
Pre-sale service :

1 . Inquiries will be replied within 24 hours ;
2 . Market research and forecast for customer ;
3 . Provide unique and professional solutions based on customer's requirement ;
4 . Data sheet and samples offered ;
5 . Other required services such as special packing design, factory visiting and so on .


In-sale service :
1 . Tracking producing procedures all the time ;
2 . Provide photos and videos as per customer's requirement during production ;
3 . Free spare parts provided .


After-sale service :
1 . Complaint respond period not exceed 24 hours , maintenance guidance and problem solution supplied in 48 hours ;
2 . Warranty : 1year ;
3 . Free technician training ;
4 . Full set of documents free of charge , which including installation guidance , software operation manual ,

easy maintenance manual and control system software CD and so on .
