Product Details:
|
| Screen Name: | Flexible 2.5mm Video Wall | Power Supply: | Meanwell |
|---|---|---|---|
| View Distance: | 2.5～30m | Viewing Angle(°): | 140 - 160° |
| Color Temperature: | RGB | Emitting Color: | 16.7 Trillion |
| High Light: | Longda thin flexible led screen,flexible led display screen PH2.5mm,Meanwell video wall module |
||

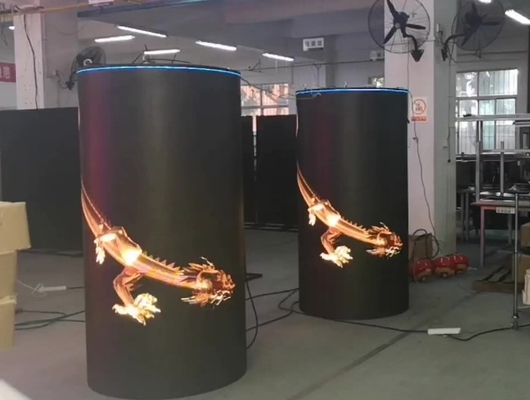

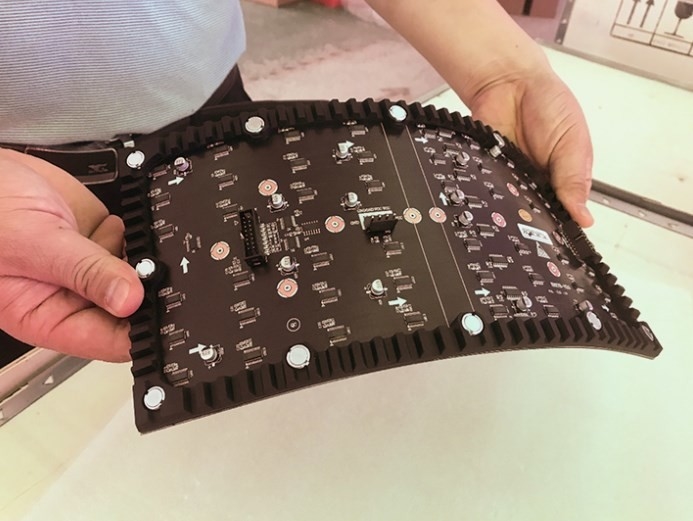

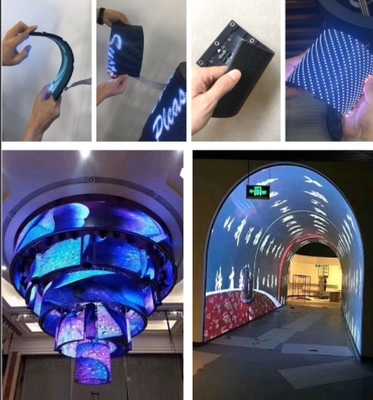

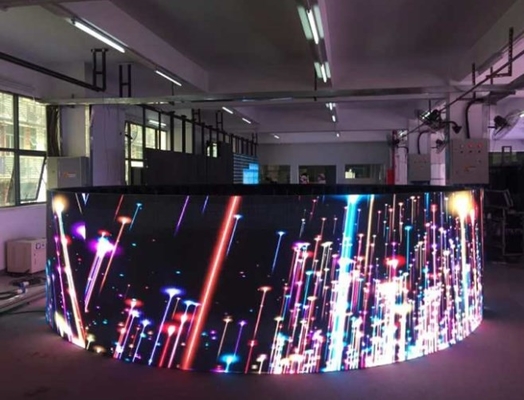

LED Flexible Module Flexible LED Display Screen Video Wall Soft Module Full Color High Resolution P2.5
Introductions
We focus on all kinds of led display screen manufacturing , included indoor & outdoor led display ,
rental & fixed led video wall , transparent led display & flexible led screen , dance floor led series .
Specifications
|
Chapter 1 Specification and main technical index |
||||
|
Construction Description |
||||
|
1 , Screen consists of cabinets , cabinet consist of modules , |
||||
|
Professional analysis |
||||
|
No. |
Professional analysis content |
Analysis item |
||
|
1 |
Color matching analysis |
To make color matching reach the best white balance effect , the color matching rate of different color brightness is R:G:B/3:6:1(SMD2121) |
||
|
Pixel Parameter |
||||
|
No. |
Item |
Parameter |
||
|
1 |
Pixel pitch |
PH2.5mm |
||
|
2 |
Pixel configuration |
1R 1PG 1PB |
||
|
Tube Chip Parameter |
||||
|
No. |
Item |
Wavelength |
Brightness |
|
|
1 |
Red tube chip |
620-625nm |
800-1000mcd |
|
|
2 |
Pure green tube chip |
520-525nm |
2200-3000mcd |
|
|
3 |
Pure blue tube chip |
465-470nm |
300-600mcd |
|
|
Electricity parameter |
||||
|
1 |
Pixel density(dots/M2) |
160000dots/ m² |
||
|
2 |
White Balance Brightness |
≥5000 (cd/m²) |
||
|
3 |
Brightness Adjusted |
256 grade automatically, 8 grade manually |
||
|
4 |
Color temperature(K) |
5000-9500 |
||
|
5 |
View Angle |
Horizontal:120°; Vertical: 120° |
||
|
6 |
Best viewing distance(m) |
2.5-30m |
||
|
7 |
Communication distance |
120 meters by LAN cable(without relay)(optical fiber transmission 500M-10000M) |
||
|
8 |
Drive Method |
1/24scan constant current |
||
|
9 |
Gray Grades |
14 levels for each color |
||
|
10 |
Display Color |
16.7trillion |
||
|
11 |
Refresh Frequency (Hz) |
≥1920 |
||
|
12 |
Control Mode |
Ynchronous controller |
||
|
13 |
Signal interface |
DVI |
||
|
14 |
Input signal |
Video: PAL/NTSC etc |
||
|
15 |
Display format |
480 * 480mm |
||
|
16 |
Software |
Support windows series system |
||
|
17 |
Waterproof |
Yes |
||
|
18 |
Protection |
IP43 or IP65 |
||
|
19 |
Working temperature(ºC) |
(-20ºC~+60ºC ) |
||
|
20 |
Humidity(RH) |
10%-90%RH |
||
|
21 |
LED Lifetime(hours) |
≥100,000 |
||
|
22 |
Whole Display Flatness |
Less than 1mm Juncture |
||
|
23 |
Power Consumption |
Average:≤220w/m²;Maximum: ≤900w/m² |
||
|
24 |
Operating Voltage |
AC100V±220V 50~60HZ |
||
|
25 |
Operating Platform |
WINDOWS(WIN10,WIN8, WIN XP) |
||
Trade Terms
|
Payment terms |
30% deposit before production, 70% balance before shipping |
|
Packing |
-Standard Export Carton with fully Polyfoam or Pearl Wool |
|
Shipping |
LED module: 3 to 5 working days upon receiving deposit payment |
|
After-Sales-Service |
-Lifetime with professional engineer support for free |
Your questions
1 : When will you make the delivery ?
We can make the delivery within 3 - 5 working days for the led modules and 15 - 18 days for the led finished screen
according to the size and quantities of your order .
2 : What technical supports can you offer ?
We provide all kinds of technology trainings for free , including the operation and maintenance training of the LED
screens in our factory , we can send an engineer team to the country of the customer to instruct the installation .
3 : How long is the warranty ?
The standard warranty is 1 year . It could be longer upon request .
4 : Do you provide any free spare parts in each order ?
Yes , a certain amount of spare parts will be provided for free , spare parts including module , power cable ,
signal cable , LED lamp , IC , mask , power supply , receiving card , etc .
