SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle

Certification
China Shenzhen Longdaled Co.,Ltd certification
China Shenzhen Longdaled Co.,Ltd certification
I'm Online Chat Now

SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle

SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle
SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle

Large Image :  SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle

Product Details:
Place of Origin: ShenZhen , China
Brand Name: LONGDA LED
Certification: CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Model Number: Led Flexible Module P4
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sqm
Price: price is negotiable
Packaging Details: Flight case packing or Plywood case packing
Delivery Time: 15 - 18 days
Payment Terms: L / C,T / T,Western Union
Supply Ability: 5000sqm per month

SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle

Description
Model: Led Flexible Module P4 Refresh Rate: 3840Hz Adjustable
Brightness: 600-800nits Resolution: 80*40
Scan: 20s Warranty: 3 Years
Highlight:

140deg Led Flexible Module

,

led wall tiles 160deg

,

led module smd Cylinder Screen

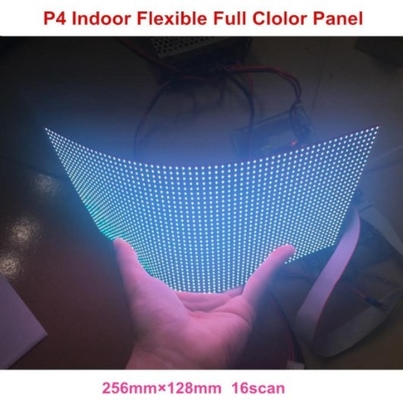

LED Flexible Indoor P4 Flexible Module for Cylinder Screen 320 X 160mm with Soft Frame LED Panel




Product Introduction

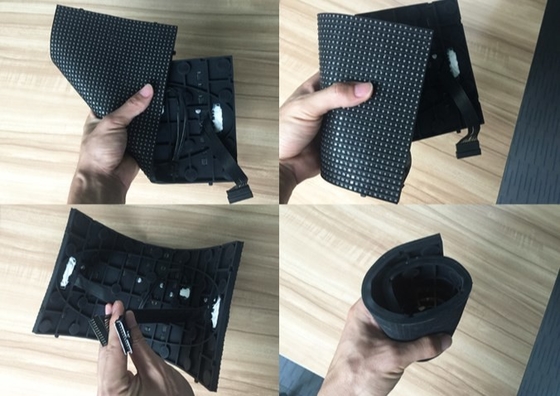

The Flexible LED Module is designed for creative LED displays with curved, round, wave-shaped, and other special shapes. Unlike traditional rigid LED modules, it features a soft and flexible PCB with a flexible mask, allowing the module to fit different curved surfaces.

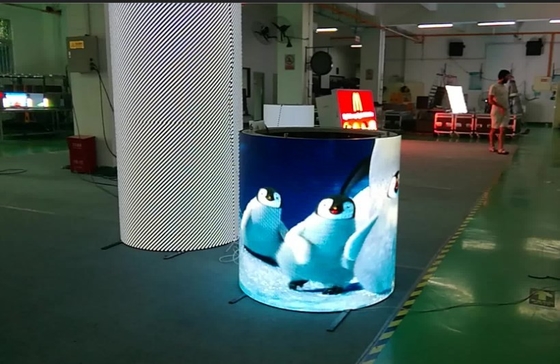

It is an ideal solution for cylindrical LED screens, curved video walls, creative stage displays, shopping malls, exhibition halls, and other special-shaped LED projects.

With vivid colors, smooth images, and flexible installation options, our flexible LED modules help turn creative display ideas into reality.


SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle



Specifications


Type P4
 Pitch  4
Series Flexible 320*160mm
Cabinet Type Customized
Access / Maintenance Front Maintenance
LED Model & Type 2121
LED Make Rayshine
 Refresh  3840Hz adjustable
Brightness 600-800nits
Contrast 5000:1
Viewing Angle H 160°,V 160°
Control System NovaStar
Scan 20
Density(dot/m²) 62500
Module Pixels (L*H) 80*40
Module Size (L*H)mm 320*160mm
Module Depth (mm) 7mm
Max Power (watts / m²) 277
Avg Power (watts/m²) 104
Module Weight (kg/pcs) 0.25kg
Certification 3C CE ROHS
Ingress Protection (IP) IP30
Grayscale ≥14bit





SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle

SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle



Key Features

Flexible Design

The flexible PCB and soft module structure allow the screen to bend into suitable concave or convex shapes, depending on the model.

Creative Shapes

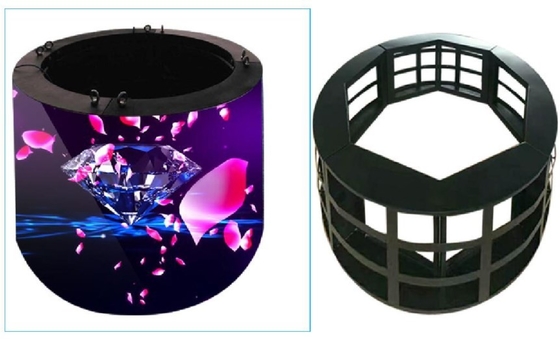

Flexible LED modules support a variety of display designs, including cylinders, arcs, waves, curved columns, and other customized shapes.

High-Quality Display

Full-color RGB LEDs deliver vivid colors, clear images, and smooth video playback for advertising and visual presentations.





SMD Cylinder Screen Led Flexible Module Led Wall Tiles 140 To 160deg View Angle



Your questions

1 : When will you make the delivery ?
We can make the delivery within 3 - 5 working days for the led modules and 15 - 18 days for the led finished screen
according to the size and quantities of your order .

2 : What technical supports can you offer ?
We provide all kinds of technology trainings for free , including the operation and maintenance training of the LED
screens in our factory , we can send an engineer team to the country of the customer to instruct the installation .

3 : How long is the warranty ?
The standard warranty is 3 year
. It could be longer upon request .
4 : Do you provide any free spare parts in each order ?
Yes , a certain amount of spare parts will be provided for free , spare parts including module , power cable ,

signal cable , LED lamp , IC , mask , power supply , receiving card , etc .
