Product Details:
|
Product Name: | P2 Led Soft Display Screen | Brightness Control: | 700cd/m² |
---|---|---|---|
Light Source: | LED | Module Size: | 240 * 120mm |
Led Lamp Size: | 1515 | Emitting Color: | RGB |
Highlight: | IP43 flexible led module,led module full color 700cd/ m2,p4 rgb led module anti distortion |

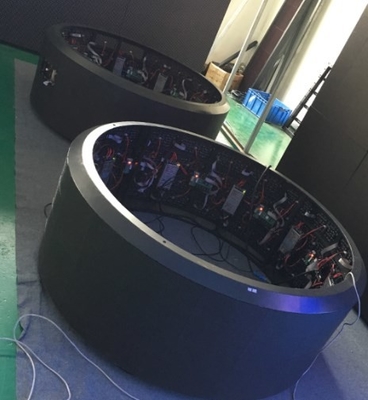

LED Flexible Full Color Indoor Curved Soft Flexible LED Screen Module P2 , P3 , P4 , P5
Advantages
1 . Led flexible full color indoor P2 / P3 / P4 / P5 has high compressive and distortion resistance ,
which can better solve the problems of installation difficulties ;
2 . Installation is convenient and quick , but also easy to shape , magnetic suction installation and
conventional indoor screen installation as simple , good ductility , can be arbitrary modeling , cylindrical
screen has high brush performance , can be lifted and hanging .
Specifications
Indoor P2 Full Color LED Screen |
|||||||
Part I Technicial Parameters |
|||||||
Led Module Specification |
|||||||
NO. |
Item |
Specification |
|||||
1 |
Pixel Pitch |
2mm |
|||||
2 |
Module Resolution |
W64×H64dots |
W128×H64dots |
W160×H80dots |
W120×H60dots |
||
3 |
Module Size |
128*128mm |
256*128mm |
320*160mm |
240*120mm(soft) |
||
4 |
Led Packing |
1515 |
|||||
5 |
IP Rate |
43 |
|||||
6 |
IC |
2038 |
5124 |
6363 |
5153 |
||
7 |
LED composition |
1R1G1B |
|||||
Cabinet Specification |
|||||||
1 |
Cabinet Size |
512*768mm |
512*512mm |
640*480mm |
480*480mm |
||
2 |
Module Qty |
W4X H6=24PCS |
W2X H4=8PCS |
W2× H3=6PCS |
W2× H4=8PCS |
||
3 |
Physical Resolution |
W256×H384dots |
W256×H256dots |
W320×H240dots |
W240× H240dots |
||
4 |
Power Consumption(MAX.) |
400W/m2 |
200W/m2 |
200W/m2 |
650W/m2 |
||
5 |
Power Consumption(AVE.) |
150W/m2 |
100W/m2 |
100W/m2 |
300W/m2 |
||
6 |
Cabinet Material |
Die-casting Aluminum |
|||||
7 |
Physical Density |
250000 dots/m2 |
|||||
8 |
Net Weight |
11Kg |
8Kg |
9.7Kg |
8kg |
||
Screen Specification |
|||||||
1 |
Brightness |
700cd/m2 |
800cd/m2 |
600cd/m2 |
700cd/m2 |
||
2 |
Colors |
16.7 trillion |
|||||
3 |
Brightness Control |
Software 256 level adjustable |
|||||
4 |
Gray Level |
14 |
|||||
5 |
View Distance |
2m~20m |
1.3~12m |
||||
6 |
Refresh Rate |
≥1200~1920Hz |
≥1200~1920Hz |
≥1920~3840Hz |
≥2880Hz |
||
7 |
Drive Mode |
1/32s |
1/40s |
1/30s |
|||
8 |
Life Span |
100,000h |
|||||
9 |
MTBF |
1000h |
|||||
10 |
Control mode |
Synchronous control or Asynchronous control |
|||||
11 |
Frame Frequency |
≥60Hz |
|||||
12 |
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||||
13 |
Operation Temperature |
-20℃ ~ +45℃ |
|||||
14 |
Operation Humidity |
10%~95% |
FAQ
1 . Reply your inquiry in 24 working hours ;
2 . Experienced staffs answer all your query in fluent English,Spanish,French,German etc ;
3 . Customized design is available,OEM & ODM are welcomed ;
4 . Exclusive and unique solution can be provided to our customer by our well-trained and professional
engineers and staffs ;
5 . Special discount and protection of sales area provided to our distributor ;
6 . Warmly welcome your visit in our company if available ;
7 . Guidance service : We can guide on line if customers have questions about the installation and usage ;
for large project , we provide your engineer a week free training or if customer could bear the relevant cost ,
our engineer can go to customer ' s country for on-site guidance ;
8 . Warranty period : 2 - 3 years after shipment .
Our service
1 . Your inquiry related to our products or price will be replied within 24hrs ;
2 . OEM & ODM , any your customized lightings we can help you design and put into production ;
3 . Distributorship are offered for your unique design and some our current models ;
4 . Protection of your sales area , ideas of design and all your private information ;
5 . Top quality + Reasonable price + Responsible After Service = Successful & Win ;
6 . We can offer you LED stage display , LED outdoor video wall , wedding LED display , stage LED electronic
screen and led large screen full color display .
Trade terms
1 . Package : Anti-shaking wooden package, Air flight case or Carton package
2 . Payment : T/T , 30% deposits before production , 70% balance to be paid before delivery
3 . Shipping freight are quoted under your requests
4 . Shipping port : Shenzhen , China
5 . Warranty time : 2 - 3 years
6 . Delivery time : 15 - 18 working days
