Product Details:
|
| PCB Color: | Black | LED Lamp: | Kinglight2121 |
|---|---|---|---|
| Cabinet Material: | Diecasting Aluminum Cabinet | IC Type: | 2153 |
| Physical Density: | 65410 Dots / M² | Drive Mode: | 16s |
| High Light: | IC 2153 wedding led video wall screen,wedding led video wall screen AC220V,wedding led display 522nm |
||
Wedding Led Screen Stage Display IP65 Outdoor Wedding Decoration P3.91 LED Screen Dance Floor
Product Introduction
Wedding led screen stage display IP65 outdoor P3.91 has high definition and high resolution
with wonderful visual performance ; ensures the spectators far from the screen can still
enjoy what is shown and guarantee superior performance even with small screen size .
Technical parameters
|
P3.91 Rental Stage Video LED Display Screen For Outdoor |
||||||||
|
1 |
Item Name |
LED Type |
Brightness |
Wave Length |
H/V Visual Angle |
|||
|
2 |
Red LED |
SMD1921 |
540-702mcd |
620-625nm |
160º/160º |
|||
|
3 |
Green LED |
SMD1921 |
1200-1300mcd |
519-522nm |
160º/160º |
|||
|
4 |
Blue LED |
SMD1921 |
200-260mcd |
462-465nm |
160º/160º |
|||
|

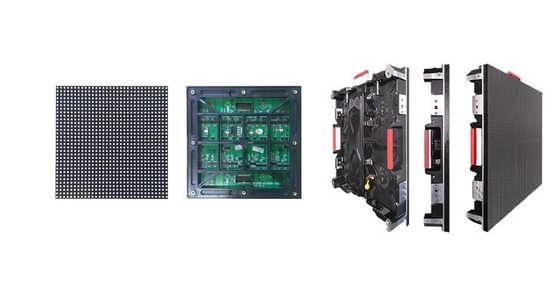

Module Specification |
||||||||
|
1 |
Pixel Pitch |
3.91mm |
||||||
|
2 |
Pixel Configuration |
1R1G1B |
||||||
|
3 |
Module Resolution |
64 x 64 pixels |
||||||
|
4 |
Module Pixles |
4096 pixels |
||||||
|
5 |
Module Size |
250mm X 250mm |
||||||
|

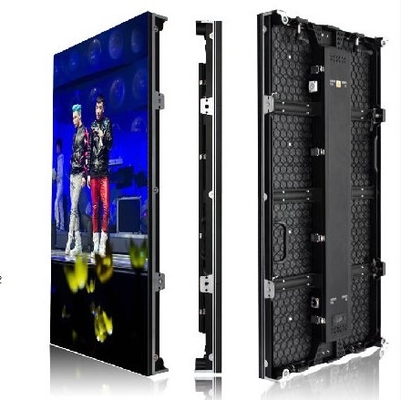

Cabinet Specification |
||||||||
|
1 |
Cabinet Size(W*H*T) |
500mm x 1000mm x 80mm |
||||||
|
2 |
Cabinet Resolution |
128 x 256 pixels |
||||||
|
3 |
Module Quanity |
2 * 4 = 8pcs |
||||||
|
4 |
Cabinet Pixels |
32768 pixels |
||||||
|
5 |
Pixel Density |
65410 pixels/m² |
||||||
|
6 |
Cabinet Material |
Die Casting Aluminum Cabinet for rental purpose |
||||||
|
7 |
Cabinet Weight |
10 kg per cabinet |
||||||
|
8 |
Packaging |
Fly case |
||||||
|
9 |
Fly Case Size |
105*65*65CM ( one case for six cabinets ) / 85kg |
||||||
|
Whole Screen Specification |
||||||||
|
1 |
Screen Brightness |
≥4500cd/m² |
||||||
|
2 |
Driving Method |
1/16 scan |
||||||
|
3 |
Max. Power Consumption |
600W/m2 |
||||||
|
4 |
Average Power Consumption |
180W/m2 |
||||||
|
5 |
Gray Level |
65536 levels(16 bit ) |
||||||
|
6 |
Display Color |
16M |
||||||
|
7 |
Frame Frequency |
≥60Hz |
||||||
|
8 |
Refresh Frequency |
≥1920Hz |
||||||
|
9 |
Uninterrupted Working Hours |
≥72 hours |
||||||
|
10 |
Screen Life-span |
≥100,000 hours |
||||||
|
11 |
MTBF |
≥5,000 hours |
||||||
|
12 |
Discrete Blind Spot Rate |
<1/10000 |
||||||
|
13 |
Continuous Blind Spot Rate |
None |
||||||
|
14 |
Blind Spot Rate |
<1/10000 |
||||||
|
15 |
Protective Scale |
For indoor use only |
||||||
|
16 |
Screen Plainness |
<±1mm |
||||||
|
17 |
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
||||||
|
18 |
Environment Temperature & Humidity |
Temperature:-20 Celsius~+60 Celsius |
||||||
|
Humidity:10%~90% RH |
||||||||
|
19 |
Control Mode |
Synchronous display with control PC by DVI |
||||||
|
20 |
Control System |
Linsn, Novastar or as you required. |
||||||
|
21 |
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
||||||
|
22 |
Interface |
Standard Ethernet |
||||||
|
23 |
Transmission Distance |
Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
||||||
|
24 |
Certificate |
CE, ROHS, FCC , CCC, ISO9001, ISO14001 |
||||||
Your questions
Q1 : LED display models are generally expressed in PX , such as P2 , P3 , P4 ..... P8 , P10 , what does this mean?
A : P1.25 , P2 , P3 , P4 ..... P8 , P10 means that the pixel pitch is 1.25mm , 2mm , 3mm , 4mm ....10mm ,
which determines resolution of a display . Pixel pitch is smaller , led display resolution is higher .
Q2 : What pixel pitch should I choose on my display ?
A : Using the PX screen , it is determined mainly by the viewing distance , the size of the
display screen , the desired effect and the customer budget .
Q3 : To order a display , What kind of information do I have to offer you ?
A : You should provide width / height of the display , the main use , the viewing distance ,
the scene photos , special requirements , then I can provide you with a detailed list of quotations .
Q4 : How to install ?
A : Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram ,
free remote debugging . We can also send our engineers to the site to guide the installation if needed .
Q5 : What about the lead time ?
A : Orders less than 50 square meter display , lead time is 15 working days .
Q6 : Can I order a sample ?
A : Yes , your sample orders are welcome , after checking our quality and service ,
we are confident that you will come back for your future orders .
