Product Details:
|
| Display Function: | Video | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Cabinet Resolution: | 128x128 Dots/ 128*256dots | Cabinet Size: | 500*500mm/ 500x1000mm |
| Brightness: | ≥5000 Nits | Refresh Rate: | 3840hz |
| High Light: | 5000 nits Rental Stage LED Screen,P3.91 Rental Stage LED Screen,Concert Disco Wedding LED Screen |
||

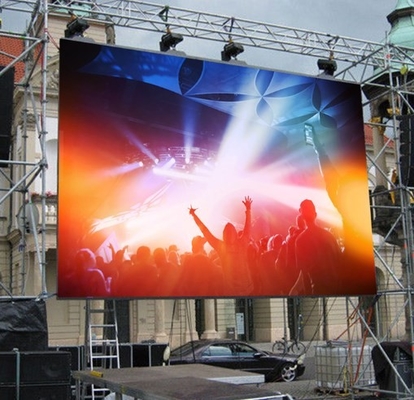

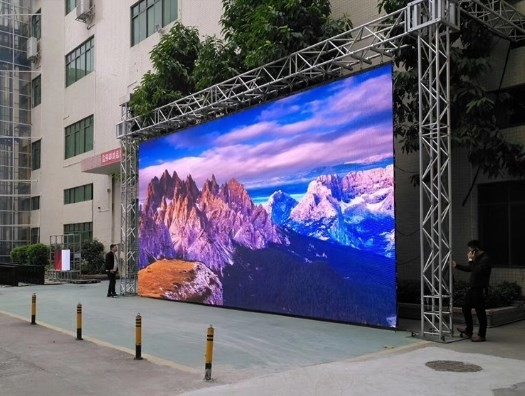

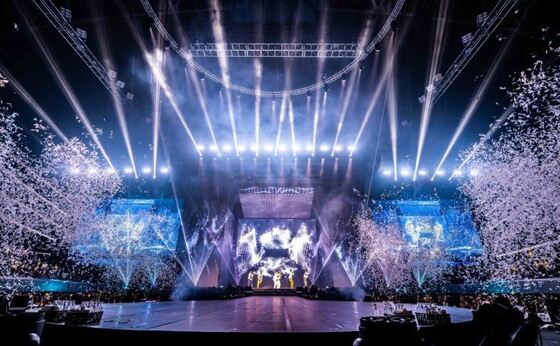

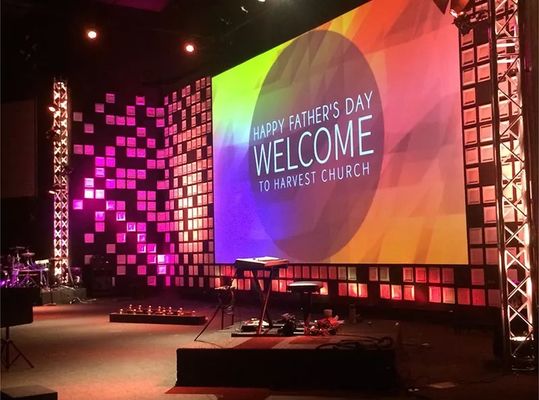

Indoor P3.91 Rental Stage LED Screen For Wedding / Disco / Concert
Features
1. Easy to calculate the area of LED screen because it is consist of 500 * 500mm/ 500mm*1000mm cabinet;
2. 16 bit color, 65536 gray scale, refresh rate over 3840HZ so the video or images on the LED screen
are very vivid and fresh, people who see it will get shocked by this amazing viewing experience;
3. The appearance is very elegant, it looks very high end and quality is stable and durable;

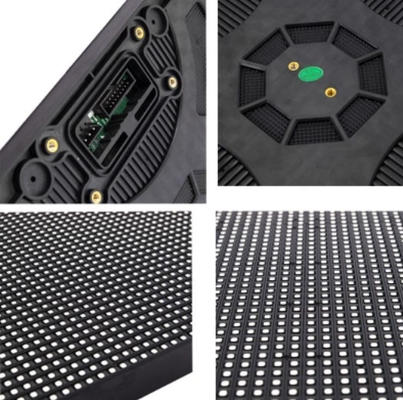

4. It is die-casting aluminum cabinet , very strong and precision is very high , tolerance can be
controlled in 0.1mm so the surface is very smooth , almost no gap between cabinets;
5. The side locks is spring locks, this is unique among all die-casting aluminum cabinets , especially
popular in European market and North American market.
Technical parameters
|
P3.91 Rental Stage Video LED Display Screen |
|||||||
|
Item |
Technical Parameters |
||||||
|
LED Parameters |
|||||||
|
Item Name |
LED Type |
Brightness |
Wave Length |
H/V Visual Angle |
|||
|
Red LED |
SMD1921 |
540-702mcd |
620-625nm |
160º/160º |
|||
|
Green LED |
SMD1921 |
1200-1300mcd |
519-522nm |
160º/160º |
|||
|
Blue LED |
SMD1921 |
200-260mcd |
462-465nm |
160º/160º |
|||
|
Module Specification |
|||||||
|
Pixel Pitch |
3.91mm |
||||||
|
Pixel Configuration |
1R1G1B |
||||||
|
Module Resolution |
64 x 64 pixels |
||||||
|
Module Pixles |
4096 pixels |
||||||
|
Module Size |
250mm X 250mm |
||||||
|
Cabinet Specification |
|||||||
|
Cabinet Size(W X H X D) |
500mm x 1000mm x 80mm |
||||||
|
Cabinet Resolution(dot) |
128 x 256 pixels |
||||||
|
Module Quanity (pcs) |
8pcs |
||||||
|
Cabinet Pixels |
32768 pixels |
||||||
|
Pixel Density |
65536 pixels/m² |
||||||
|
Cabinet Materials |
Die Casting Aluminum Cabinet for rental purpose |
||||||
|
Cabinet Weight |
10 kg per cabinet |
||||||
|
Packaging |
Fly case |
||||||
|
Fly Case Size |
105 * 65 * 65CM ( one case for six cabinets ) / 85kg |
||||||
|
Whole Screen Specification |
|||||||
|
Screen Brightness |
≥4500cd/m² |
||||||
|
Driving Method |
1/16 scan |
||||||
|
Best Viewing Distance |
3.91m - 40m |
||||||
|
Max. Power Consumption |
600W/m² |
||||||
|
Average Power Consumption |
180W/m² |
||||||
|
Gray Level |
65536 levels(16 bit ) |
||||||
|
Display Color |
16M |
||||||
|
Frame Frequency |
≥60Hz |
||||||
|
Refresh Frequency |
≥1920Hz |
||||||
|
Uninterrupted Working Hours |
≥72 hours |
||||||
|
Screen Life-span |
≥100,000 hours |
||||||
|
MTBF |
≥5,000 hours |
||||||
|
Discrete Blind Spot Rate |
<1/10000 |
||||||
|
Blind Spot Rate |
<1/10000 |
||||||
|
Protective Scale |
For indoor use only |
||||||
|
Screen Plainness |
<±1mm |
||||||
|
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
||||||
|
Environment Temperature & Humidity |
Temperature:-20 Celsius~+60 Celsius |
||||||
|
Humidity:10%~90% RH |
|||||||
|
Control Mode |
Synchronous display with control PC by DVI |
||||||
|
Control System |
Linsn, Novastar or as you required |
||||||
|
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
||||||
|
Interface |
Standard Ethernet |
||||||
|
Certificate |
CE , ROHS , FCC , CCC ,ISO9001 , ISO14001 |
||||||
FAQ
1 : What is the warranty of your led display ?
A : We offer 2-3 years warranty, and more than 100000 hours screen life span .
2 : What is your payment term ?How long it takes to delivery ?
A : We usually accapt the T / T or L / C both of them will at least 30 % deposit in advance , and the rest
of 70 % will paid before delivery .
The lead time is usually 20 day .
3 : How can you ensure the led display product quality ?
A : Before shippment , all the screens have aging test , and then we also have waterproof test and shake
test , ensure products can transportation safety and normal use .
4 : What is your pre - sale and post - sale service ?
A : For pre - sale service , we have professional sales team and technical team ,who are willing to answer
your question within 24 hours .
For post - sale service , we will instruct you how toinstallation , how to use , how to change the broken
moudles , and we can also send the technicals to your country , in general , our led display will not have
a big problem , you can rest assured to buy .
